Simple Networking Project

Network Requirements

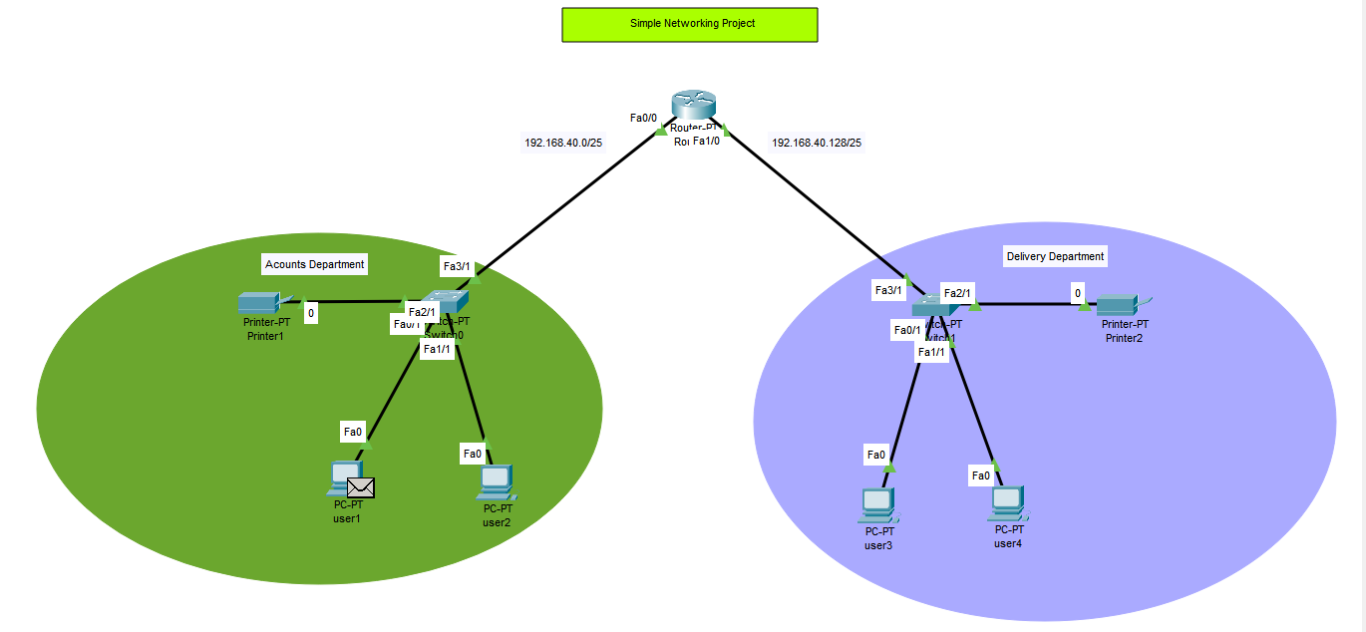

Design a network in Cisco Packet Tracer to connects ACCOUNTS and DELIVERY departments through the following:

Each department should contain at least two PCs.
Appropriate number of switches and routers should be used in the network.
Using the given network 192.168.40.0, all interfaces should be configured with correct IP addresses, subnet mask and gateways.
All devices in the network should be connected using appropriate cables.
Test communication between devices in both ACCOUNTS and DELIVERY departments.

Technologies Implemented

Creating a Simple Network using a Router and Access Layer Switch.
Connecting Networking devices with Correct cabling.
Connecting two Networks using a Router.
Subnetting and IP Addressing.
Assigning IP Addresses to Router's interfaces.
Static IP Address allocation to Host Devices.
Test and Verifying Network Communication

PC Configuration

The IP addresses and subnets were calculated and assigned to the PCs and other devices on the network using the static IP address allocation.

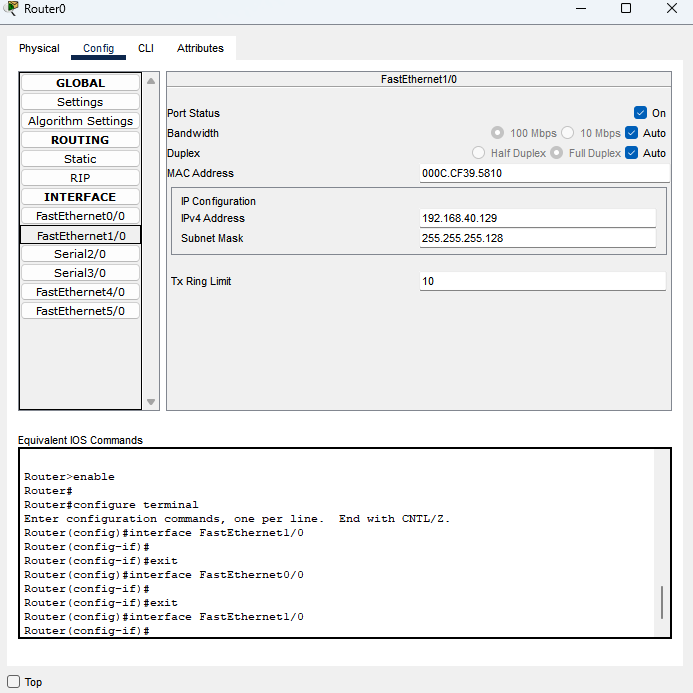

Router Configuration

The router is configured by assigning the gateway IPs and subnets to the used interfaces on the router.

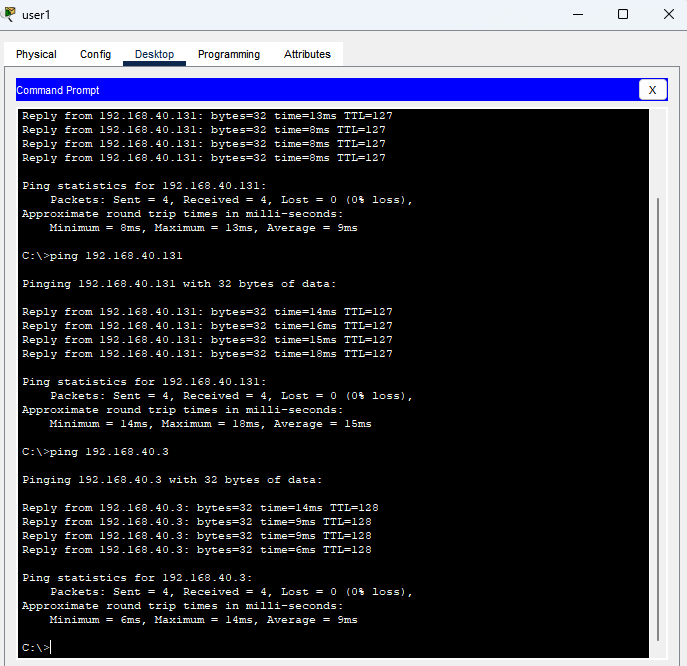

testing and Verification

The connectivity of devices on the network is tested and verified by using the ping command to establish connection.
